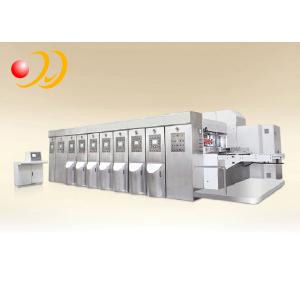

Fully Automatic Corrugated Box Making Machine Bottom Printing
Brand Name:PRINTYOUNG
Certification:CE
Model Number:2-1-K7 Series
Minimum Order Quantity:1 Set/Sets
Delivery Time:30 working days after received your payment
Payment Terms:T/T or western Union
Contact Now
Add to Cart
Verified Supplier
Location:
Shanghai Shanghai China
Address:
Room 27B, NO,58 New Jinqiao Road, Pudong, Shanghai, China 201206
Supplier`s last login times:
within 23 hours
Product Details
Company Profile
Product Details
Fully Automatic Corrugated Box Making Machine Bottom Printing
Specifications :
Model | 900*2000 | 1200*2000 | 1200*2400 |
Max. mechanic speed | 250 pcs/min | 250 pcs/min | 250 pcs/min |
Max. feeding size | 880*2000 mm | 1180*2000 mm | 1180*2400 mm |
Min. feeding size | 300*650 mm | 350*750 mm | 350*750 mm |
Skip feeding | 1100*2000mm | 1500*2000mm | 1500*2400mm |
Max. printing area | 800*2000 mm | 1150*2000 mm | 1150*2400 mm |
Max. thickness of board | 7.2mm | 7.2mm | 7.2mm |
Min slotting space Slotting type L | 240*80* 240*80mm | 250*90* 250*90mm | 250*90* 250*90mm |
Max slot depth | 250mm | 320mm | 320mm |
Dimension(L*W*H) | 11659*4240*3200mm 12079*4240*3200mm | 13015*4800*3500mm 13550*4400*3500mm | 13015*4800*3500mm 13550*4800*3500mm |
Model | 1400*2400 | 1600*2800 |
Max. mechanic speed | 220 pcs/min | 180 pcs/min |
Max. feeding size | 1380*2400 mm | 1570*2800 mm |
Min. feeding size | 380*750mm | 450*850 mm |
Skip feeding | 1700*2400mm | 1900*2800mm |
Max. printing area | 1320*2400 mm | 1540*2800 mm |
Max. thickness of board | 7.2 mm | 7.2mm |
Min slotting space Slotting type L | 260*90* 260*90mm | 260*100* 260*100mm |
Max slot depth | 320mm | 560mm |
Dimension(L*W*H) | 13570*4820*3500mm 14208*4820*3500mm | 14021*5220*3500mm 14701*5220*3500mm |
Introduction:
· This machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
· Auto high quality materials and parts.
· Well hardened and ground transmission gears, hardness more than 60(HRC).
· Auto zero return and auto reset.
· All gaps between cylinders and rollers are computerized and/or motorized control.
· Vacuum transfer system used in all printing sections.
· Use expansion sets tight link to reduce abrasion of the shaft,keep precision of the machine for long years.
· All cylinders and rollers are chromed plated for ideal hardness.
· PLC control system with touch screen control.
· Able to save order,speed up the order shift.
· All electronic and pneumatic components are woth European standards.
· Able to facilitate the production management.
Fully Automatic Corrugated Box Making Machine Bottom Printing
