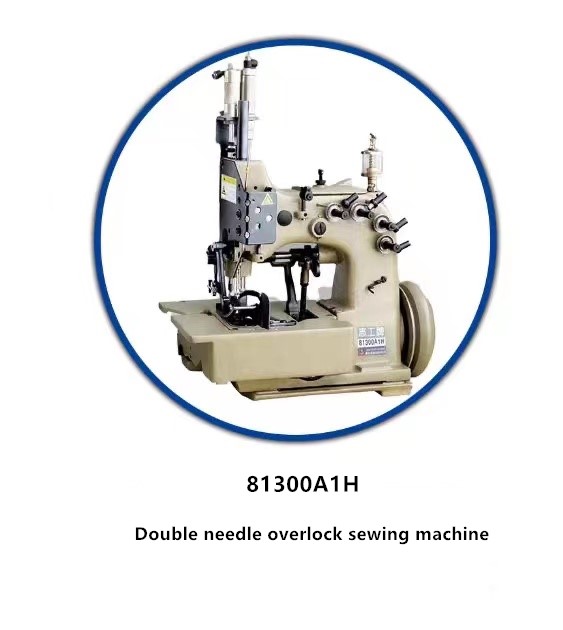

81300A1H Double Needle Overlock FIBC Big Bag Sewing Machine
Model Number:81300A1H
Minimum Order Quantity:1set
Delivery Time:7 workdays
Payment Terms:T/T
Place of Origin:China
Price:Negotable
Contact Now
Add to Cart
Active Member
Location:
Xuzhou Jiangsu China
Address:
NO.1-109 Tunli Industrial park , East Of Yudai Road, Quanshan District, Xuzhou, Jiangsu, China (Mainland)
Supplier`s last login times:
within 13 hours
Product Details
Company Profile
Product Details
Description
This machine is extra heavy weight material overlock sewing machine designed for the production of Jumbo Bags. The top and bottom feeding made can complete the sewing of climbing and corner easily. The Unique structure design can complete the overlock stitch and chain stitch at the same time. Its steady post bed frame design is especially suitable for the jumbo bag at the sewing inlet and outlet. it can sew the upper and lower sealing strip at the same time
With electric control presser foot lifting mechanism,the operation is more flexible and convenient,and the sewing effect is more perfect.The trimming length of the independently designed electric control heating trimming device completely meets the standard request of jumb bags
Specification
| Stitch Length | 6-13mm | |
| Needle Distance | 5.0mm(13 ga) | |
| Max.Sewing Speed | up to1400rpm | |
| Max.Sewing Capacity | up to 19mm | |
| Stitching Type | 401.502 SSa-2 | |
| Overedge Stitch Width | 10mm(3/8″) | |
| Total seam Width | 15mm(19/32″) | |
| Feed Mechanism | Walking Foot | |
| Lubrication | Manual Oiling with Sight Feed Oiler | |
| Thread Chain Cutter | Electro-pneumatically Operated Hot Thread Chain Cutter | |
| Presser Foot Lifter | Electro-pneumatically Operated | |
| Standard Needle | 9853GA430/172 | |
| Drive Motor | Servo motor 750W | |
| Cutter | Heat | |
| Air Pressure | 4kg/cm3 | |
| Air Consumption | 10NI/min | |
| Gross Weight | With motor and pedestal | 133kgs |
| Net Weight | 126kgs | |
| Volume | 0.8 M3 | |
Package
We have two types package of this machine. If head only, it is packed into carton. (Mostly for whole sellers). If installed compelete set, it will be packed into wooden box. When open wooden box, people can more easy to use it.
