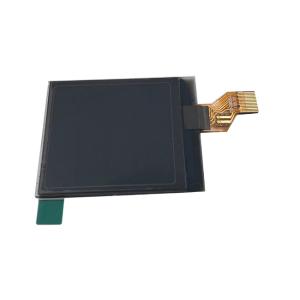

VA Negative Graphic Transmissive Lcd Display Module Model OKM - B033
Brand Name:OKSMART
Certification:SGS
Model Number:OKM-B033
Minimum Order Quantity:1000
Delivery Time:30-45 working days
Payment Terms:Trade Assurance, L/C, T/T, Western Union, MoneyGram, D/P, D/A
Contact Now
Add to Cart
Active Member
Location:
Shenzhen Guangdong China
Address:
2nd Floor, No. B, Yadibao Company, Tongfuyu Third Functional Area, Tongsheng Community, Dalang Street, Longhua District, Shenzhen, China
Supplier`s last login times:
within 41 hours
Product Details
Company Profile
Product Details
Segment VA Negative Transmissive lcd display module model OKM - B033
We could design and customize segment, character, graphic LCD Display and Module(Including LED Backlight, IC) for you with different size, shape, display icons. Welcome to contact us for details.
DESCRIPTION:
1 CS0 Chip Select , When CS0= “L”, chip is selected
2 RST When RST= “L”, the settings are initialized
3 CD Input data when CD= “H”, and command when CD = “L”
4 SCK Serial clock input terminal
5 SDA Serial data input terminal
6 VDD Supply voltage for logic circuit +3.3V
7 VSS Ground
8 V0 Power supply for the liquid crystal.
9 XV0 Negative LCD driver supply voltages.
10 NC --
11 NC --
12 VG Power supply for the liquid crystal.
13 A --
14 K --
>>Delivery ensurance
We have international logistic center in HK, Shanghai and Shenzhen, so we can arrange fastest and most convenient delivery for you !
>>After-Sale service
We have professional support team to provide effective service, we are young and full of passion!
| Viewing area: | 33mm(L)*32.4mm(W) | Driving scheme: | 1/4 Duty, 1/3 Bias |
| Operating temperature: | -10℃~60℃ | Storage temperature: | -20℃~70℃ |
| Module size: | 37mm(L)*41.5mm(W)*1.7mm(H) | Format: | SEGMENT |
