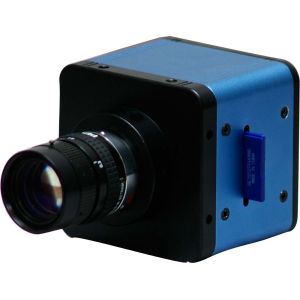

Smart HD Microscope Camera With Measurement Software And Analysis Function
Features:
1. Compact smart camera, No computer needed,camera itself with build in Measurement Software and Analysis procedure.
2. The whole system is easy to use and smart to work.
3. The system can measure the below data and save the image including data to the build in SD card or U-Disk.
Icon | Name | Function description |
Line measurement | Can measure 2 casual marked points distance | |
Horizontal Line measurement | Can measure Horizontal distance | |
Vertical Line measurement | Can measure Vertical distance | |
Parallel lines measurement | measure and report the parallel lines' distance. parallel lines' distance | |
Angle measurement | measurement results will display angle and its supplementary angle degree | |
Arc measurement | system will show the curve data | |
Circle measurement | measurement results will display radius, diameter and area will display radius, diameter and area | |
Center measurement | connect two center points and display the distance between two centers | |
Rectangular measurement | Measurement of the length and perimeter of rectangle | |
Polygon measurement | To measure perimeter of this polygon |
4. Camera original strong light suppression function, it is special designed for the detection of plastic and metal products which the surface reflect strong light
5. Comes with SD card 32GB or U-Disk Storage, can store the product images and relative data(measurement,analysis...)
6. non contact detection and measurement, can replace the traditional plate system.
7. OEM service avaliable
8. OSD index menu and Settings
Specification:
Icon | Name | Function description |
1mm | The calibration ratio 1mm | |
0.1mm | The calibration ratio 0.1mm | |
mm unit | Use mm unit | |
inch unit | Use inch unit | |
Memory save | Save the current calibration file | |
Memory read | Choose and Read the calibration file | |
mouse cursor | Center crossline | |
mouse cursor | Small crosshair | |
mouse cursor color | Choose proper mouse cursor color can help user recognize the shape edge | |
measuring lines and text color | Select the measuring lines and text color to distinguish background color | |
dynamic measurement | dynamic measurement | |
static measurement | static measurement | |
cancel | Cancel the current operation, backward to last step | |
delete | Delete the measuring lines and data | |
Save data | Save the measurement data in SD card in table form | |
Save image | Save the image together with measurement data in SD card | |
Camera settings | ON/OFF camera settings |
