CE HGH55 Linear Guide Rail High Precision 1000mm Linear Rail
Brand Name:ZANE
Certification:CE，ISO
Model Number:GHH-CA/GHH-HA
Minimum Order Quantity:negotiate
Delivery Time:Three days at the soonest after order confirmation
Payment Terms:L/C, T/T
Contact Now
Add to Cart
Verified Supplier
Location:
Changzhou Jiangsu China
Address:
Building 4, Jingdong Intelligent Industrial Park, Xinqian Road, Zhonglou District, Changzhou City, Jiangsu Province,China
Supplier`s last login times:
within 1 hours
Product Details
Company Profile
Product Details

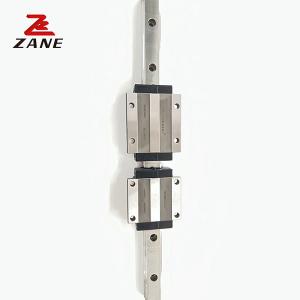

length from 100mm to 1000mm high precision HGH55 linear guide
length from 100mm to 1000mm high precision HGH55 linear guide
Accuracy
Based on the running accuracy of ball slides that travel on the rails, the required motion accuracy is expressed in a particular accuracy grade code, like P5 or PN, depending on the manufacturer.
Applied Loads
These are the loads applied to the linear guides, which usually consist of self-weight of a table, weight of transported objects, and
or forces that are working on a machine tool. The loads are normally applied vertically or laterally against motion axis.
| Model | Combination size (mm) | Block size(mm) | Slide rail size(mm) | Fixing bolts for slide rails size | Basic dynamic fixed load | Basic fixed fixed load | Allowable static moment | weight | ||||||||||||||||||||||
Mr kN^n | MP kNf | My kNF | block kg | slide kg/n | ||||||||||||||||||||||||||
| H | HI | N | W | B | BI | C | Li | L | KI | G | Mxl | T | h2 | h3 | WR | HR | D | h | d | P | E | (mm) | C(kN) | Co(kN) | ||||||
| GHH15CA | 28 | 4.3 | 9.5 | 34 | 26 | 4 | 26 | 39.4 | 61.4 | 10 | 5.3 | M4x5 | 6 | 7.95 | 7.7 | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 | 20 | M4xl6 | 11.38 | 25.31 | 0.17 | 0.15 | 0.15 | 0.18 | 1.45 |
| GHH20CA | 30 | 4.6 | 12 | 44 | 32 | 6 | 36 | 50.5 | 77.5 | 12.25 | 12 | M5x6 | 8 | 6 | 7 | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5xl6 | 17.75 | 37.84 | 0.38 | 0.27 | 0.27 | 0.30 | 2.21 |
| GHH20HA | 50 | 65.2 | 92.2 | 12.6 | 21.18 | 48.84 | 0.48 | 0.47 | 0.47 | 0.39 | ||||||||||||||||||||
| GHH25CA | 40 | 5.5 | 48 | 35 | 6.5 | 35 | 58 | 84 | 16.8 | 12 | M6x8 | 8 | 10 | 23 | 22 | 11 | 9 | 7 | 60 | 20 | M6x20 | 26.48 | 56.19 | 0.64 | 0.51 | 0.51 | 0. 51 | 3.21 | ||
| GHH25HA | 12.5 | 50 | 78.6 | 104.6 | 19.6 | 32. 75 | 76.00 | 0.87 | 0.88 | 0.88 | 0.69 | |||||||||||||||||||
| GHH30CA | 45 | 6 | 16 | 60 | 40 | 10 | 40 | 70 | 97.4 | 20.25 | 12 | M8xl0 | 8.5 | 9.5 | 28 | 26 | 14 | 12 | 9 | 80 | 20 | 38.74 | 83.06 | 1.06 | 0.85 | 0.85 | 0.88 | 4. 47 | ||
| GHH30HA | 60 | 93 | 120.4 | 21.75 | 13.8 | M8x2ij | 47.27 | 110.13 | 1.40 | 1.47 | 1.47 | 1.16 | ||||||||||||||||||
| GHH35CA | 55 | 18 | 70 | 50 | 10 | 50 | 80 | 112.4 | 20.6 | 12 | 16 | 19.6 | 34 | 29 | 14 | 12 | 9 | 80 | 20 | 49.52 | 102.87 | 1.73 | 1.20 | 1. 20 | 1.45 | 6. 30 | ||||
| GHH35HA | 1.5 | 72 | 105.8 | 138.2 | 22.5 | M8xl2 | 60.21 | 136.31 | 2.29 | 2.08 | 2.08 | 1.92 | ||||||||||||||||||
| GHH45CA | 70 | 9.5 | 86 | 60 | 13 | 60 | 97 | 139.4 | 23 | M10xl7 | 16 | 45 | 38 | 20 | 17 | 14 | 105 | M12x35 | 77.57 | 155.93 | 3.01 | 2.35 | 2.35 | 2.73 | 10.41 | |||||
| GHH45HA | 20.5 | 80 | 128.8 | 171.2 | 28.9 | L8. | 30.5 | 22.5 | 94.54 | 207.12 | 4.00 | 4.07 | 4.07 | 3.61 | ||||||||||||||||
| GHH55CA | 80 | 100 | 75 | 75 | 117.7 | 166.7 | 27.35 | M12xl8 | 22 | 29 | 53 | 44 | 23 | 20 | 16 | 120 | 30 | M14x45 | 114.44 | 227. 81 | 5.66 | 4.06 | 4.06 | 4.17 | 15.08 | |||||
| GHH55HA | 13 | 23. 5 | 12. 5 | 95 | 155.8 | 204.8 | 36.4 | 12.9 | 139.35 | 301.26 | 7.49 | 7.01 | 7.01 | 5.49 | ||||||||||||||||
| GHH65CA | 90 | 15 | 126 | 76 | 25 | 70 | 144.2 | 200.2 | 43.1 | 25 | 15 | 15 | 63 | 53 | 26 | 22 | 18 | 150 | 35 | M16x50 | 163.63 | 324.71 | 10.02 | 6.44 | 6.44 | 7.00 | 21.18 | |||
| GHH65HA | 31.5 | 120 | 203.6 | 259.6 | 47.8 | 12.9 | M16x20 | 208.36 | 457.15 | 14.15 | 11.12 | 11.12 | 9.82 | |||||||||||||||||
Tips for ordering linear guide and linear guide blocks:
(1) Tell us the width of linear guide: e.g. 9mm
(2) What is the size code of linear guide blocks, pls? E.g. MGN9C, HGH15CA and etc.
(3) What is the linear guide length you need, and how many guide blocks in one linear guide, pls? E.g. MNG91R80MM; 1 pcs of blocks on the 80mm linear guide
All Types we can produce Linear Guide:
HGW15CA HGW20CA HGW25CA HGW30CA HGW35CA HGW45CA HGW55CA HGW65CA
HGW15CC HGW20CC HGW25CC HGW30CC HGW35CC HGW45CC HGW55CC HGW65CC
HGH20HA HGH25HA HGH30HA HGH35HA HGH45HA HGH55HA HGH65HA
HGW20HC HGW25HC HGW30HC HGW35HC HGW45HC HGW55HC HGW65HC
HGW20HA HGW25HA HGW30HA HGW35HA HGW45HA HGW55HA HGW65HA
EGH15CA EGH20CA EGH25CA EGH30CA EGH15SA EGH20SA EGH25SA EGH 30SA
EGW15CA EGW20CA EGW25CA EGW30CA EGW15SA EGW20SA EGW25SA EGW30SA
Our advantages for Linear guide HG series:
1. Complete sliding units system with high accuracy and can be moved without deflection.
2. Long life use.
3. Prompt delivery and good service.
4. Large stock and low batch wholesale.
5. ISO9001:2008
6. Competitive price, good quality, delivery fast.
7. Fast response to e-mails or solving questions quickly.
8. Honest cooperation and service.
