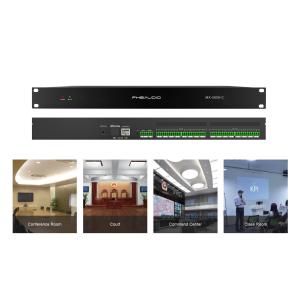

8CH Aluminum DSP Digital Processor AGC Sound System Processor
Brand Name:FHB Audio
Certification:CE,ROHS
Model Number:MX-0808-C
Minimum Order Quantity:2 Set
Delivery Time:1-10Set: 5-7day ;10-100Set:10-5Days
Payment Terms:T/T, Western Union
Contact Now
Add to Cart
Verified Supplier
Location:
Shenzhen Guangdong China
Address:
No.312, 2712 SongBai Road, LongTeng Community, Shiyan Street, Baoan District, Shenzhen, Guangdong , China.518108
Supplier`s last login times:
within 36 hours
Product Details
Company Profile
Product Details
High performance with cost effective 8CH Digital Audio Matrix Processor For Sound System
|
Specification:
| Product Technical Parameters | |||
| DSP Chip | Dual Core Ti 450MHz FLOPS | ||
| Centrally controlled instruction set generator | Support | ||
| Input Processing | Pre-amplifier, signal generator, extender, compressor, 5-segment parameter equalization, inversion, automatic gain, automatic mixing | ||
| Output Processing | Segment 31 shows equalizer, delay device, frequency divider, limiter, and inverting | ||
| Matrix Mixing | Input and output signal matrix mixing, mixing component control | ||
| Automatic camera tracking function | Support | ||
| Scene preset | 100 groups of custom Settings | ||
| Sampling | 48KHz | ||
| phantom power | 48V | ||
| Frequency response | 20 - 20K Hz,±0.2dB | ||
| THD+N | ≦0.004% @4dBu | ||
| Digital to analog dynamic range (A Weighted) | 120dB | ||
| Analog to Digital dynamic range (A Weighted) | 114dB | ||
| Input Impedance (Balanced) | 20kΩ | ||
| Output impedance (Balanced) | 100Ω | ||
| EIN(A Weighted) | ≤-120 dBu | ||
| Channel isolation | 104dB @1k Hz | ||
| Common mode rejection | 70dB @80 Hz | ||
| Maximum input level | 18dBu | ||
| Maximum output level | 18dBu | ||
| Floor Noise | -90dBu | ||
| Working Power | DC12V/2A | ||
| Size | 482*258*45(mm)； | ||
| Net Weight | 2.5kg | ||
Software:
Applications:
8CH Aluminum DSP Digital Processor AGC Sound System Processor
