Single Cut Type N Inverted Cone Carbide Burr 6mm Shank Diameter 19mm Head Diameter Machining Surface Profile of Workpiece
Brand Name:BABOS
Model Number:N1916C06
Minimum Order Quantity:20pcs
Delivery Time:3 days for standard products, 1-2weeks for custom products.
Payment Terms:L/C,D/A,D/P,T/T,Western Union
Place of Origin:China
Contact Now
Add to Cart
Verified Supplier
Location:
Chengdu Sichuan China
Address:
No.1118, Section 2 of Chenglong Avenue, Chengdu Economic and Technological Development Zone(Longquanyi District) Chengdu, Sichuan, China
Supplier`s last login times:
within 39 hours
Product Details
Company Profile
Product Details

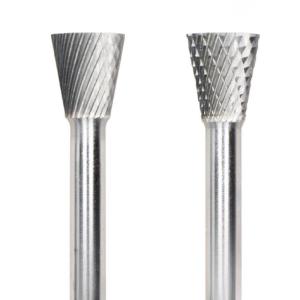

Type N Inverted Cone Carbide Burr 6mm Shank Diameter, 19mm Head Diameter With 16mm Cut Length
Solid Carbide Inverted Cone Burr 6mm Shank
Brand: BABOS
Material: Tungsten Carbide
Cut Diameter:19mm
Length of Flute: 16mm
Shank Diameter: 6mm
OAL: 61mm
Cut Type: Single Cut
Other Available Sizes Related to Type N Carbide Burrs Both in Metric and Inch Standard:
| Metric Standard | ||||||
| Shank Dia. (mm) | Cutter Dia. (mm) | Length of Cut (mm) | Overall Length (mm) | Included Angle | Tool No. | The Combination of Head and Shank |
| d2 | d1 | l2 | l1 | |||
| 3 | 3 | 4 | 38 | 10° | N0304 | Solid |
| 5 | 6 | 44 | 10° | N0506 | Brazed | |
| 6 | 7 | 45 | 10° | N0607 | Brazed | |
| 6 | 6 | 7 | 52 | 10° | N0607 | Brazed |
| 8 | 9 | 54 | 10° | N0809 | Brazed | |
| 10 | 10 | 55 | 20° | N1010 | Brazed | |
| 12 | 13 | 58 | 20° | N1213 | Brazed | |
| 16 | 16 | 61 | 20° | N1616 | Brazed | |
| 19 | 16 | 61 | 30° | N1916 | Brazed | |
| 8 | 12 | 13 | 58 | 20° | N1213 | Brazed |
| 16 | 16 | 61 | 20° | N1616 | Brazed | |
| 19 | 16 | 61 | 30° | N1916 | Brazed | |
| Inch Standard | ||||||
| Shank Dia. (inch) | Cutter Dia. (inch) | Length of Cut (inch) | Overall Length (inch) | Included Angle | Tool No. | The Combination of Head and Shank |
| d2 | d1 | l2 | l1 | |||
| 1/4'' | 1/4'' | 1/4'' | 1-3/4" | 10 | SN-51 | Brazed |
| 3/8'' | 3/8" | 2-1/9" | 13° | SN-2 | Brazed | |
| 1/2'' | 1/2'' | 2-1/4" | 28° | SN-4 | Brazed | |
| 5/8'' | 3/4'' | 2-1/2" | 18° | SN-6 | Brazed | |
| 3/4'' | 5/8" | 2-3/8" | 30° | SN-7 | Brazed | |
Customization:
- Please send us the drawings or other important information if you need non-standard carbide burrs.
- Please contact us if you need more information about type N burrs or other shapes of burrs.
- OEM is avaliable.
Cut Selection Guide:
| STANDARD CUT(M) | STANDARD DOUBLE CUT (X) | WIDE CUT (C) | FINE CUT (F) | ALUMINUM CUT(W) | DIAMOND CUT(D) |
