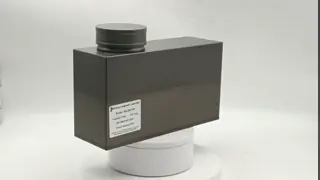

Shear Beam Type Load Cell 5kg-500kg Bellow Type Load Cell Stainless Steel

Product Description:

Hermetically Sealed Metal Bellows Load Cell Made Of Stainless Steel Offering Load Capacity of 5kg-500kg (WL-129)

Based on resistance stain gauge technology, the Bellow load cell WL-129 is likewise a shear beam type load cell.With a rated output of 2.0±0.05mV/V, the beam type load cell provides load metering capacity ranging from 5 kg to 500 kg. The weight sensor WL-129 is an IP 68 hermetically sealed metal bellows made of stainless steel which is ideal for many application envionment. The Load sensor WL-29 is appropriate for a range of automated stamping applications because the Bellow type load sensor WL-129 presents C3 accuracy, mg-level resolution, and good stability features.The load cell WL-129 is primarily employed in weighing modules that are, for example, used for tank weighing applications, as well as in platform,packing scales,hopper scale and conveyor scales for dispensing and leveling measurement.

In order to satisfy client needs, the stainless steel bellow load cells can also be altered or customized. At BRANS, we recognize that every application is different and needs a customized response. We can adjust our product to meet your unique needs thanks to our bespoke service, which guarantees the highest level of accuracy and dependability. We are devoted to giving you the finest possible solution for your particular application through our tailored service.

Features:

• ​Shear Beam Load Cells,Bellow Load Cells
• Made of Stainless steel;IP 68 protection
• Hermetically sealed metal bellows
• Load measurment capacity:5kg/10kg/20kg/30kg/50kg/100kg/200kg/500kg
• Suitable for connecting in parallel
• Used in various automated stamping aapplications
• With high precision and mg-level resolution
• Mainly used for packing scales,hopper sacles and industrial system
• Different cable lengths and other options customizable

Technical Parameters:

Dimensions (Unit:mm):

Packing and Shipping:

The Load Cell will be carefully packaged and shipped to ensure its safe arrival to your location. The packaging process is as follows:

• The load cell will be placed in a sturdy cardboard box to protect it from any external damage during shipping.
• The box will be filled with foam padding to provide additional cushioning and prevent the load cell from moving around during transport.
• The load cell will be sealed in a plastic bag to protect it from moisture and other environmental factors.
• Additional layers of bubble wrap may be added for extra protection.
• The box will be securely sealed with tape to prevent any tampering.
• A shipping label with your address and the product information will be affixed to the box.
• The package will be shipped using a reliable and trusted courier service.

Once the package has been shipped, you will receive a tracking number to monitor the status of your delivery. Please ensure that someone is available at the shipping address to receive the package to avoid any delays or issues.
