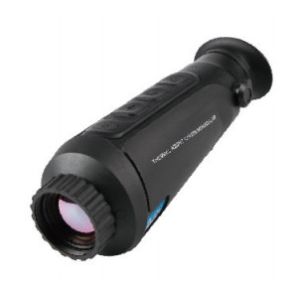

FW-S256G Monocular infrared thermal imaging telescope

Brand Name:Forward
Model Number:FW-S256G
Minimum Order Quantity:1 set
Delivery Time:5-8 work days
Payment Terms:L/C, T/T
Place of Origin:China
Contact Now

Add to Cart

Verified Supplier
Address: Unit 4, Block B, Xi'an OE Park, No. 77, Keji 2nd Road, High-tech Zone, Xi'an, 710075, Shaanxi
Supplier`s last login times: within 21 hours
Product Details Company Profile
Product Details

Features of FW-S256G Monocular infrared thermal imaging telescope

  • 640*512 Vanadium Oxide Uncooled Focal Plane
  • GPS, electronic compass, laser ranging function.
  • Built-in visible light camera makes on-site evidence collection and recording more convenient.
  • High resolution 1440*1080,High-performance display.
  • IP66 waterproof and dustproof, 1 meters drop-resistant

Specifications of FW-S256G Monocular infrared thermal imaging telescope


Detector TypeVanadium Oxide Uncooled Focal Plane
Resolution640*512
Pixel spacing12μm
NETD≤40mk@30℃
Frame rate50Hz
Focal distance35mm
FOV17.7°*13.3°
Image modeWhite hot, black hot, red hot.iron red
Basic magnification1.38x
Image transmissionWIFI Real-time image transmission, supports mobile phone APP image browsing, photo taking and video recording functions
FocusManual focus
Display0.39inch,color OLED,resolution1440*1080
Accuracy±1m
Electronic zoomX1.0-4.0
BatteryLithium battery,>4h
Basic magnification2.3x~9.2x
Focus range1m~∞
Wavelength8-14μm
Storage32G
Protection levelIP66
Down1m
Woking Temperature-20℃~+50℃
Storage temperature-40℃~+60℃
Weight0.45kg
Size200mm*71mm*71mm
WIFIDC5V/2A(Micro USB)
Detection distancePepole 1.8m*0.5m 1000m
Car 2.3m*2.3m 1500m
Identification distancePepole 1.8m*0.5m 500m
Car 2.3m*2.3m 790m
