1oz FR4 TG170 Rogers Alu PCB Hard Gold For Hemox Analyzer Fabrication
Brand Name:IBE
Certification:ISO14001
Model Number:FG-22
Minimum Order Quantity:NO MOQ
Delivery Time:15 WORKING DAYS
Payment Terms:L/C, T/T
Contact Now
Add to Cart
Active Member
Supplier`s last login times:
within 39 hours
Product Details
Company Profile
Product Details
1oz FR4, TG170, Aluminum, Rogers, Alu PCB Hard Gold for Hemox Analyzer Fabrication with 9 layers
About IBE Corporation
Founded in 2005, IBE Corporation is a mid-size provider of
end-to-end electronics manufacturing services (EMS) including PCBA
production, systems integration and comprehensive testing services,
enclosure fabrication, as well as product design, sustaining
engineering and supply chain management services. IBE facilities
span a broad footprint in the China,United States and Vietnam. IBE
services extend over the entire electronic product life cycle from
the development and introduction of new products through to the
growth, maturity and end-of-life phases.
Production capability:
| 1 | Material | PR4,Halogen free, High TG,CEM3,PTFE,Aluminum BT,Rogers |
| 2 | Board Thickness | Mass Production:0.3-3.5mm Samples:0.21-6.0mm |
| 3 | Surface Finish | HASL,OSP,Immersion Silver/Gold/SN,Flash Gold, Gold Finger,Hard Gold Plating |
| 4 | PCB Panel Size | Max Mass Productoin: 610x460mm Sample:762x508mm |
| 5 | Layer | Mass production:2-58 Layers, Samples:1-64 Layers |
| 6 | Min. Drill Hole Size | Laser Drill 0.1mm,Machine Drill 0.2mm |
| 7 | PCBA QC | X-ray,AOI Test,Functional Test |
| 8 | Speciality | Automotive,Medical/Gaming/Smart Device,Computer,LED/Lighting,etc |
| 9 | Sanforized | Buried via, Blind via, Mixed Pressure,Embedded Resistance,Embedded
Capacitance, Local Mixed Pressure, Local High Density, Back Drill,
Impedance Control |
Aluminum PCB
Aluminum PCB for LED, also known as the metal base PCB, is a kind of PCB which comprises of thin dielectric thermally conductive as well as electrically protected layer and copper clad overlay that is overlaid between metal base and copper foil. The copper foil embraces the ideal circuit design while metal base permits the warmth disseminating with the assistance of dielectric put between the layers. The development for aluminum PCB is mostly separated into three layers.
- Circuit Layer
- Thermal Insulation Layer
- Base Layer

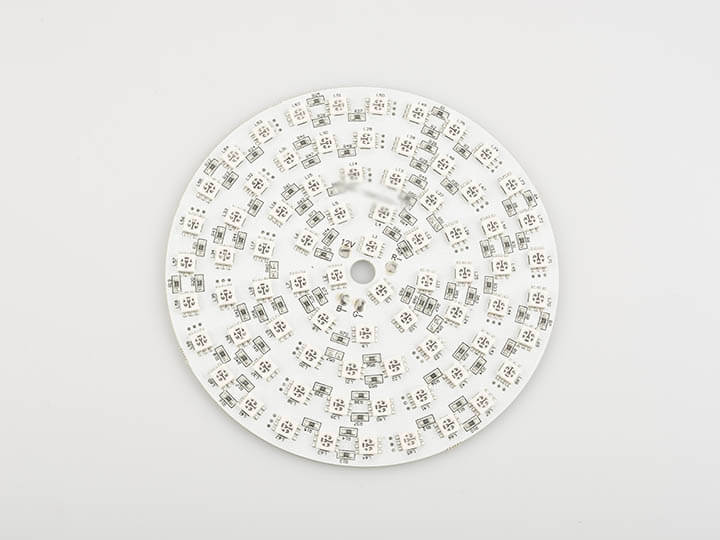

aluminum printed circuit board 12V led
aluminum printed circuit board manufacturer moko

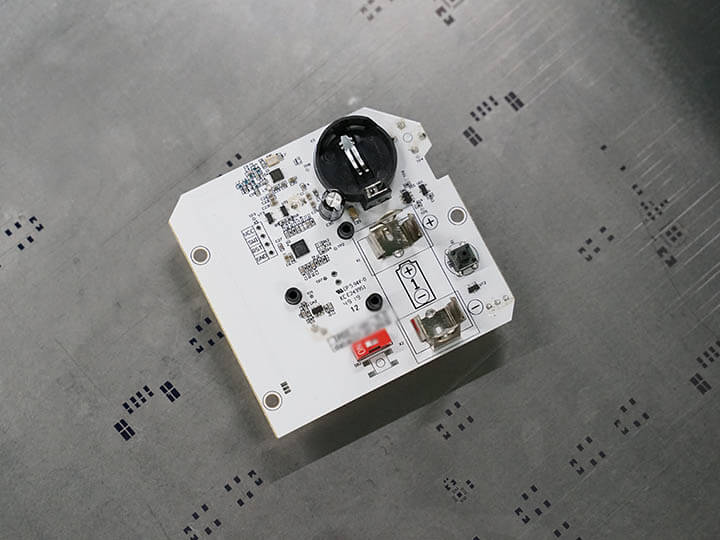

aluminum printed circuit board Prototyping for alarm

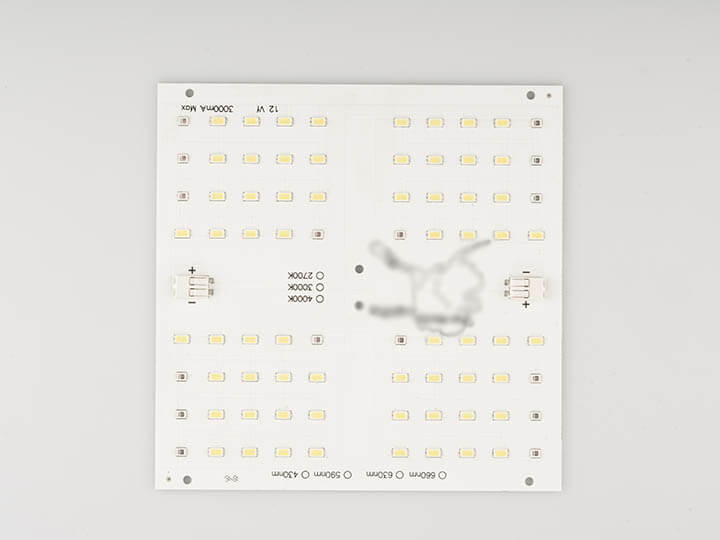

aluminum Prototype for led light

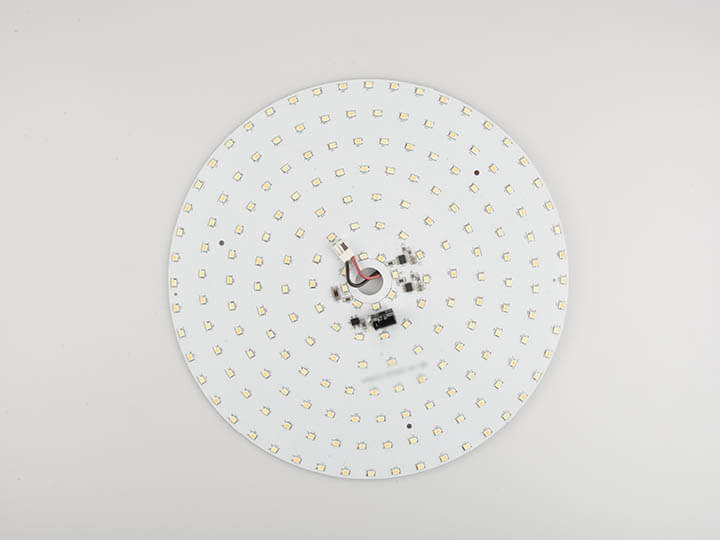

CM-LED Aluminum pcb manufacturer
smoke detector aluminum pcb board
Why IBE Is Your Best Choice for Aluminum PCB Service?
We are a notable manufacturer with regards to the aluminum PCB manufacturing and PCB assembly. We have a well-prepared staff, a committed R&D group, and cutting-edge setup. This enables us to flaunt large scale manufacturing ability. We give premium quality for aluminum PCB which will meet all your requirements. We can likewise produce uniquely designed aluminum PCBs according to your needs. Don’t hesitate to connect with us in case you have any inquiries or in the event that you need an estimate for aluminum PCB.
1oz FR4 TG170 Rogers Alu PCB Hard Gold For Hemox Analyzer Fabrication
